Servo Fast Access Gate B-ST11 Series
- Product details
- Specification Parameters
- Product News

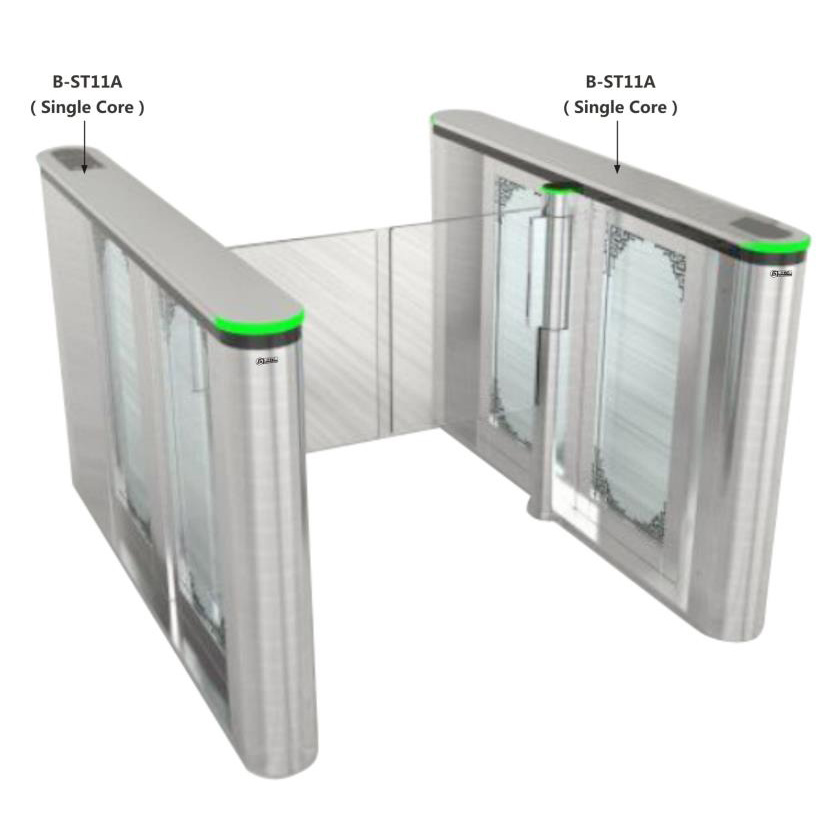

Servo Fast Access Speed Gate (Single Core) Model B-ST11A
Servo Fast Access Speed Gate (Double Core) Model B-ST11B
BAOBIWANXIANG fast access gate is beautiful and slim, can accommodate more passages in limited space; the rounded streamlines and clear materials make the lobby and entrance more elegant, and the security personnel get a wider view.
High-speed Effective Pass Rate
Fast access control gate supports fast pass and memory function. Recording number of valid cards have been read in a short period of time, the channel will remain open until the corresponding number of people pass, it will not be closed. Of course, the passenger pass direction must be consistent with the card reading direction and the gate opening direction, otherwise will caused alarm. Another type of fast pass is that when the blade is closed, once a valid card is read, it stops close and open directly to allows pass. The next passenger does not have to wait for the previous one to pass completely, \ which greatly improves the traffic rate, and each channel can maximum pass 45 people per minute .
The channel opens quickly and accurately when read a valid certificate. The movement of the blade is controlled by a rotary encoder, which makes the movement faster, more precise and quieter. When the passenger passes, the blades return to the closed position of the passage smoothly, and preparing for the effective passage of the next one. Or keep open without close, waiting for the next to pass, this is effective memory. The memory function effectively improves the passage rate and speed of pass.
Speed Gate is very user-friendly and highly caters to the intuition of users and employees. With LED and sound prompts, users can clearly perceive the status of the pass. Different situations (such as unauthorized entry, staying in the channel, trailing, etc.) have different lights and sounds, and the lights and sounds depend on the type and direction of the warning. The speed gate has standard sound prompts, and users can define the sound by themselves.
Support Multiple Traffic Modes
Speed gate provides multiple modes of passage. The channel can be two-ways controlled, card reading for entrance and free for exit; Then there is the free passage mode, which is free to enter and exit during a certain period of time, like the normally open mode. but the channel will under controlled after this period of time.
Identify Abnormal Entry
Speed gate is also an effective identification device, BAOBIWANXIANG sophisticated detection technology can detect any invalid intruders. When a person shows an unauthorized or fake certificate, our detection device has a recognition rate of 100%. It can block the fake ID person from entering. If someone tries to follow, the blades of the turnstile will stop in a half-open state. No matter it is an invalid certificate or a trailing, BAOBIWANXIANG turnstile will prompt users and security personnel with sound and light. As an option, the channel supports adding notification output, remote alarm, video and other device.
Safe and Reliable
BAOBIWANXIANG speed gate is safe and reliable and has obtained CE certification. In an emergency situation such as power failure, the emergency input is triggered, the passage blocking blade is released, and the free passage mode is entered until the emergency state is removed and then reset to the passage closed. If the emergency is a fire alarm, the blocking blade automatically opens in the direction of the exit, and the user quickly exits the scene. After the fire alarm is removed, the channel will automatically reset and close, and return to normal working status.
Access control and visitor system integration
BAOBIWANXIANG Speed Gate supports integration with any access control system.
Options and customization
There are more than 10 options for the speed gate. The material and color of the top of the box, the moving blade etching logo, etc., static or dynamic blade lighting, multiple blade heights, barcode reader integration, etc.
L1600XW165XH1000mm (Single core protrudes 30mm)
L1600XW165XH1000mm (Double core protrudes 30mm on each side)
Imported stainless steel 304, thickness 1.8mm
10mm tempered glass or acrylic
10mm tempered glass or acrylic
Pass 45 people/min
Logic control 4 pairs of infrared plus light curtain
Drive motor (imported servo motor) (10 million single pendulum detection)
Noise running fast, accurate and silent
Configuration instructions: Convenient integration of access control, visitors, face, QR code, etc.
